AG Spray Pro UTV Sprayer 65 Gallon 12V Manual W/ 3 Section-Boom

Product Description

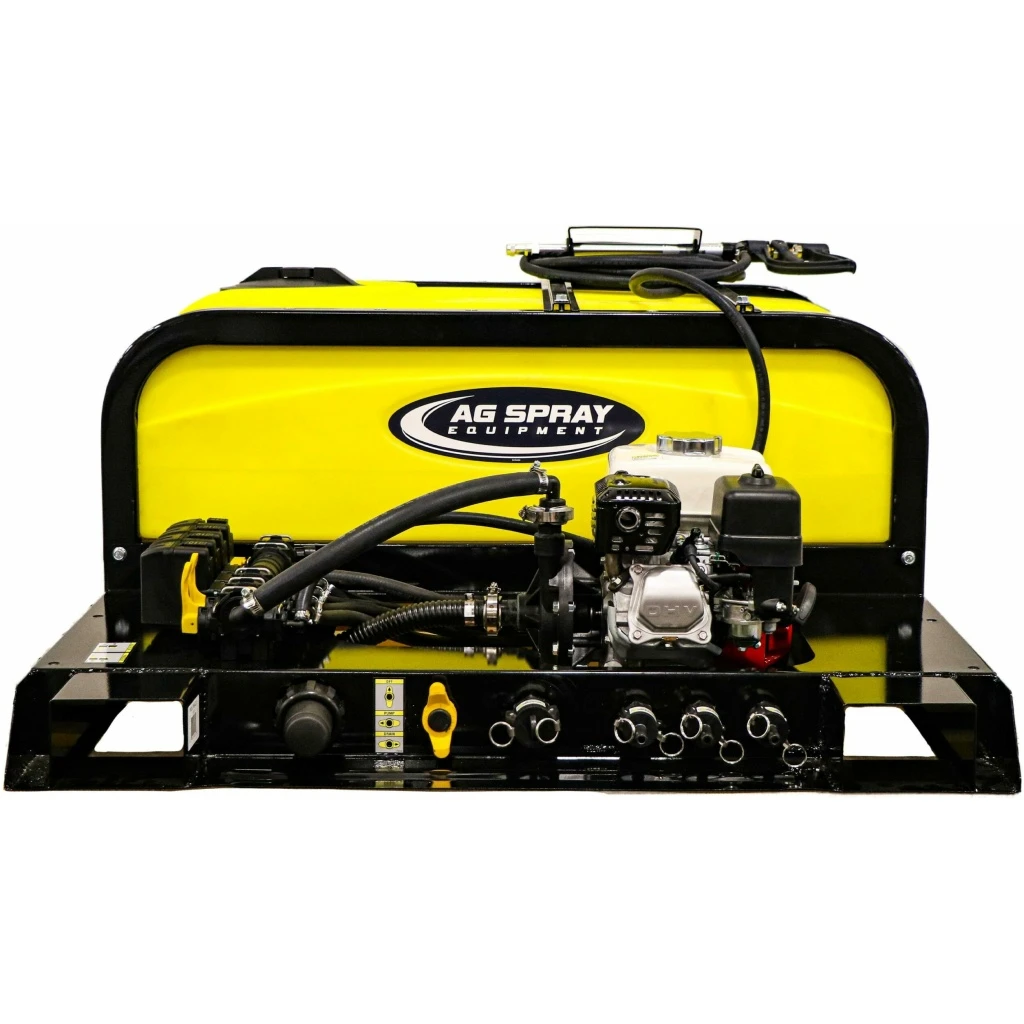

The 5303227 PROUTV Series Gas Engine configuration from Ag Spray is a professional series 65 gallon sprayer designed for the bed of an UTV that is built to handle any job whether it’s utility, municipality, rangeland or ag. The gas engine version is designed for the tailgate to be open on most models of UTV. The 12 volt cab mounted electric controls allow the operator to adjust the pressure and turn the boom sections on/off from inside the cab. The steel base has fork lift pockets incorporated for convenient installation and removal. The poly tank is built with a molded-in tank baffle with sloped floor and a molded-in outlet fitting for easy and complete clean out. Equipped with a GX160 Honda engine coupled to a GE-85 Centrifugal Pump to provide reliable pressure that delivers plenty of volume and is rated up to 23 GPM and a max of 58 PSI. The pro series long range handgun with adjustable pattern tip distributes up to 38 feet of horizontal spray and up to 27 feet of vertical spray and comes with 25 feet of 3/8 inch hose. Hand wand spray pattern is controlled by how far the trigger is depressed which allows the operator to change between straight to wide fan pattern to meet your application needs. Combined with our 1 year warranty, AG SPRAY PROUTV Sprayers will deliver dependable use when you need it most.

The 5282450 Boom Extender BXT3438 is a very versatile boom with an 6 Feet traditional center section boom coverage and 14 Feet effective coverage Boom Extender Tip on each side that deliver up to 34 Feet of effective coverage in one pass. The Boom Extender Tip (BXT) mounts are designed with adjustable swivel brackets that can be rotated 180 degrees to allow the operator to direct the spray coverage to desired spray target area. A detent button on the BXT bracket acts as a locating stop at 5 degree above horizontal for optimized effective coverage, taking the guess work out of resetting the nozzles after targeted applications. At 40 psi the BXT3438 has an effective coverage of 34 Feet and requires 3.8 gpm of product flow. Utilize the entire boom for pasture, rangeland or spot spraying troubled areas or restrict the flow to left, center or right or any combination of sections for right-away, road sides or lane weed management.

• Fully drainable tank with molded in outlet fitting, no lip in the tank to hold back product
• Tank baffle to limit sloshing for better handling
• Lid gasket to prevent liquid leaking when going over rough terrain
• Heavy skid with Fork Lift pockets for easy installation/removal
• 12 threaded inserts in each tube for additional accessory mounting
• Electric 12V controls for in-cab pressure and 3 section on/off control
• Boom options of traditional or boomless in 3 sections
• Shutoff valve on handgun hose inlet
• Prevents the hose from being charged with chemical until you want to use it
• Eliminates the need to flush the handgun line when switching chemicals when you didn’t charge the line and use the handgun
• Prevents the handgun from being the shutoff and potentially leaking
• Gas units designed for tailgate to be down with boom mounts attaching directly to the skid base
• Centrifugal pump installed in a lowered position so pump inlet is approximately equal to bottom of tank for better priming
• 4 Ratchet Strap tie down slots on under side of tank retention tubes for secure installation
