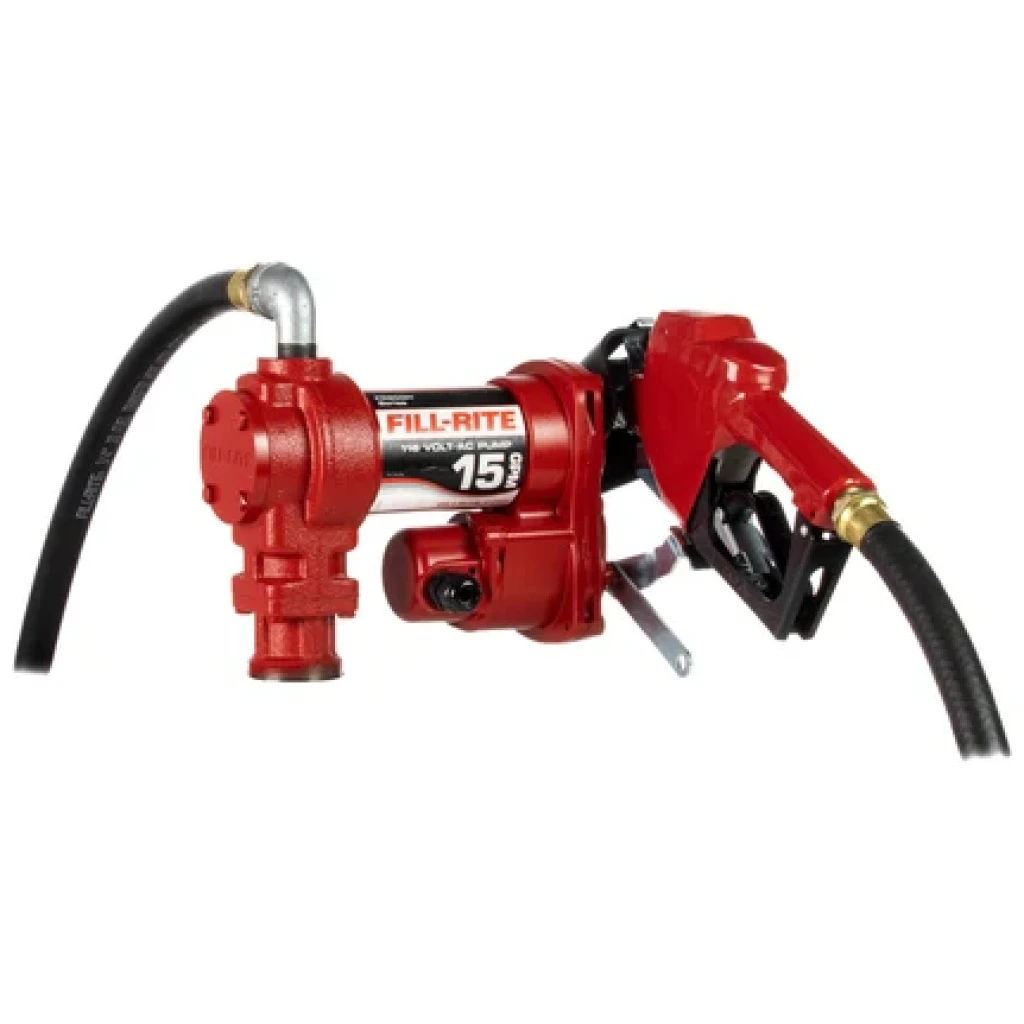

Fill-Rite 115V 15GPM Fuel Transfer Pump W/ Auto Nozzle #FR610HA

The FR610HA model is a 115V AC, 15 GPM, heavy-duty fuel transfer pump. This pump and accessory bundle comes complete with a hose, automatic nozzle, and installation components.

The Fill-Rite FR610HA is a 115V AC heavy-duty, cast-iron, rotary vane fuel transfer pump that is capable of generating up to 15GPM. It is designed to handle flammable liquids such as gasoline, diesel, biodiesel blends up to B20, ethanol blends up to E15, kerosene, and mineral spirits. The pump motor utilizes a low amp draw and is thermally protected to prevent overheating. The FR610HA model is available with a 3/4″ automatic (red boot) nozzle, 12′ UL fuel hose, 20″ – 34″ steel telescoping suction pipe, as well as other accessories. Made in the USA with a limited lifetime warranty and UL/cUL listed pump and motor, this product is ideal for agriculture, construction, or any industry requiring mobile fuel transfer.

Cast-Iron Construction – durable cast-iron construction provides heavy-duty performance and withstands daily use in mobile applications
Easy Installation – adjustable electrical junction box rotates 180° for added flexibility while wiring and improved installation in tight spaces
Long Life – thermally-protected motor prevents overheating, ensuring your pump withstands the test of time
Equipment Safeguard – built-in strainer filters out particulates and prevents fuel contaminates from damaging your equipment
Reliable On/Off Switch – on/off switch lever features a cast metal stopping arm, preventing premature failure from repeated use
Limited Lifetime Warranty — we stand behind our product with an industry-leading Limited Lifetime Warranty to protect your purchase and your business
You work through all kinds of conditions, so why shouldn’t your fuel transfer pump? For over 60 years, Fill-Rite has set the standard for reliable fuel transfer pumps, meters, and accessories.

Our customers recognize Fill-Rite for its durability and years of elite performance in the field. Proudly manufactured in the USA, Fill-Rite equipment is constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure, and both on and off-road applications.

Fill-Rite is supported by a wide network of distributors and retailers, ensuring you will always be able to find replacement parts and rebuild kits for your fuel transfer equipment.

PERFORMANCE
Max Flowrate 15
Flowrate Range 0-15 GPM
Inlet / Outlet Thread Size (in.) 1 / 0.75
Mounting Size / Thread / Type 2 / NPT / Electric
Duty Cycle 30 min
Motor Power 0.17
Power Type AC
Current Range 1.5 – 1.5
Operating Temperature Range -17 to 104 F
Suction Lift (ft.) 8
Dry Vacuum (in. Hg) 5
Max Discharge Pressure 16
Discharge Head (ft.) 37
Max Operating Pressure (PSI) 16
Strainer Mesh Size (micron) 20×20

INCLUDED ACCESSORIES
Discharge Hose ¾” X 12’ UL Listed Hose with Static Ground Wire
Nozzle ¾” Automatic Unleaded Nozzle
Cable Connection Bare Leads
