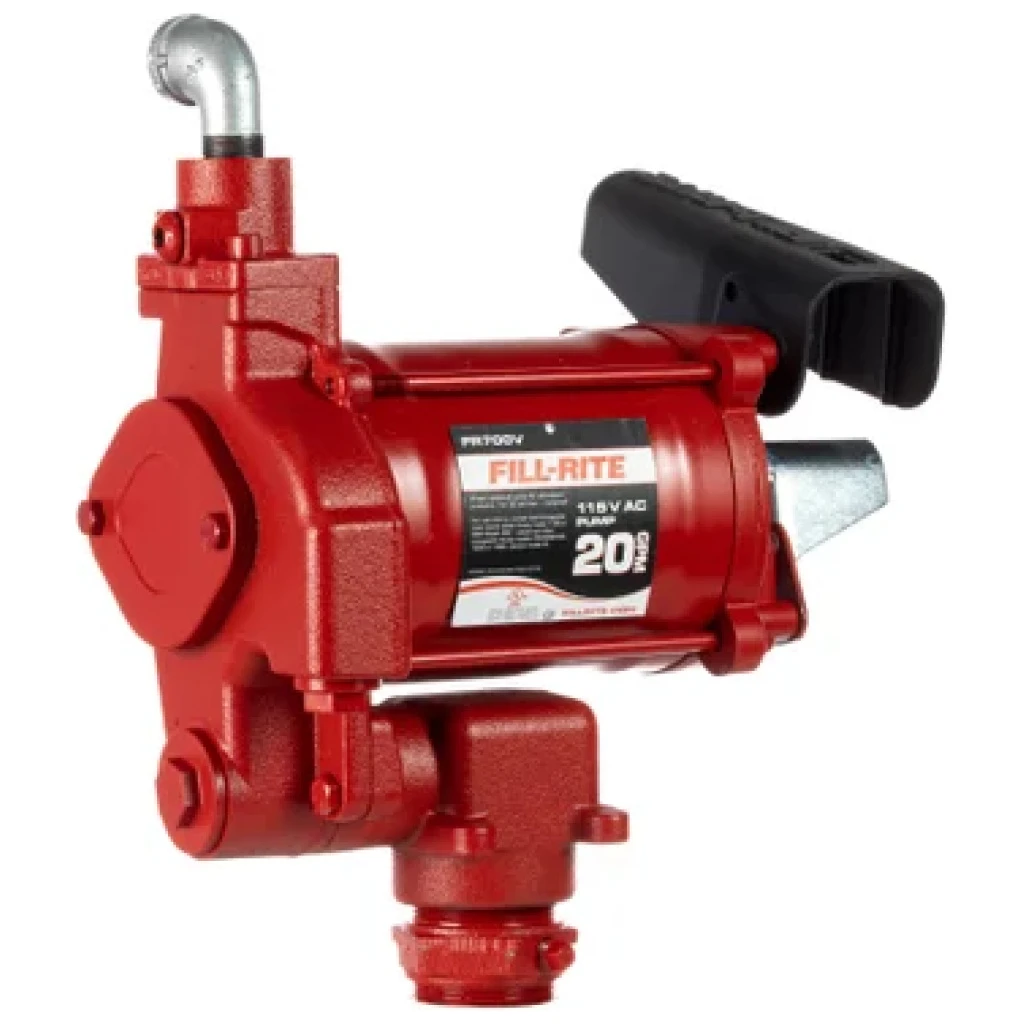

Fill-Rite 115V AC 20 GPM Fuel Transfer Pump #FR700VN

The Fill-Rite 700V Series AC heavy-duty fuel transfer pumps lead the industry in performance and longevity. Designed with all cast-iron construction, thermal overload protection, and provided in a variety of supplied configurations, it’s no surprise why the FR700V Series is considered the most dependable AC pump in the industry. You name the application and the durability and dependability of Fill-Rite’s 20GPM FR700V Series will meet the challenge. These rugged pumps are also backed by the industry’s most stringent safety standards like UL/cUL, ATEX, CE, and carry Fill-Rite’s Limited Lifetime Warranty.

Fill-Rite’s 700 Series of heavy-duty fuel transfer pumps are built to last with cast-iron construction and rotary vane technology, which maintains peak performance over time.

FEATURES
The FR700VN model is a 115V AC, 20 GPM, heavy-duty fuel transfer pump. This model includes installation components and no additional accessories.

Industry Staple – our most popular AC pump that transfers fuel at 20 GPM, a tremendous entry-level option that is ideal for filling medium-sized equipment from aboveground storage tanks
Reliable Technology – proven for over 60 years, rotary vane technology produces consistent flow performance over the entire life of your pump
Cast-Iron Construction – durable cast-iron construction provides heavy-duty performance and withstands daily use in high-volume, stationary applications
Long Life – thermally-protected motor prevents overheating, ensuring your pump withstands the test of time
Limited Lifetime Warranty — we stand behind our product with an industry-leading Limited Lifetime Warranty to protect your purchase and your business
Limited Lifetime Warranty, protecting your purchase and your business

PERFORMANCE
More Information
Max Flowrate 20
Motor Power 0.33
AC Frequency (Hz)
Current Range 0-5.5
Thermal Protection Switch
Operating Temperature Range -17°F to 105°F
Self Priming
Suction Lift (ft.) 15
Dry Vacuum (in. Hg) 12
Max Discharge Pressure 23
Max Operating Pressure (PSI) 23
Strainer Mesh Size (micron) 40 x 40 x .010″
Viscosity Range (cSt) 0.38 – 2.4

INCLUDED ACCESSORIES
Additional Accessories Pump Only
Cable Connection Hard-Wire

DIMENSIONS
Assembled Product Height x Width x Depth (in.) N/A x N/A x 7.9
Assembled Product Weight (lbs.) 45.2
Package Height x Width x Depth (in.) 10.5 x 20 x 20.5
Gross Weight (lbs.) 51.900
